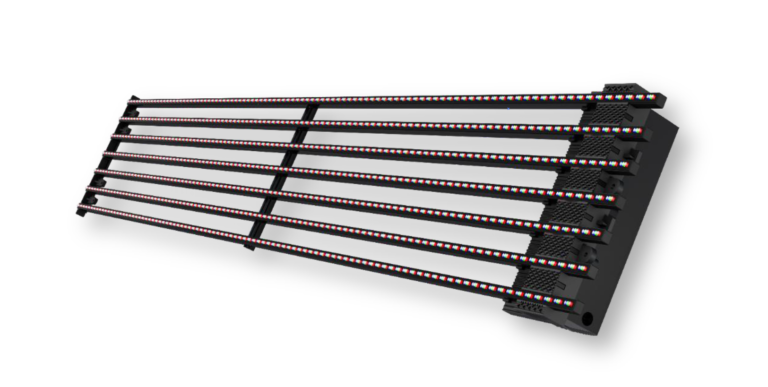

The IGTR-O2525E is an advanced LED outdoor display designed for modern architectural applications. With its ultra-slim, fan-less design and impressive 60% transparency, it offers a sleek and lightweight solution ideal for glass facades and building exteriors.

Key Features:

  • Lightweight Design: With an average weight of only 12 kg/m², the display is easy to install and maintain, reducing the need for heavy structural reinforcement.
  • Flexible Installation: Can be mounted from both the front and back, allowing for adaptable on-site installation in various conditions.
  • No Need for Heavy Steel Structures: When installed on building walls, the required steel structure can be significantly reduced, saving up to 50 kg per square meter.
  • Energy Efficient: Consumes less power, has a longer lifespan, and is more cost-effective in production, delivery, installation, and disposal.
  • All-Weather Performance: Rated IP67 for protection against dust and water, UV-resistant, and capable of operating in extreme temperatures from -30°C to +60°C. The aerodynamic, wind-resistant design ensures durability in harsh weather, including storms and typhoons.
  • Certified Quality: Complies with CCC, CE, and ETL standards, meeting requirements for electromagnetic radiation and low-voltage electrical safety.

Ideal Applications:

  • Glass building facades
  • Commercial centers and shopping malls
  • Outdoor advertising installations
  • Architectural projects requiring aesthetic and technical excellence
Parameter Value
Product Model O-2525E
LED Type DIP
Pixel Pitch 25mm / 25.6mm
Brightness 7000 nit
Unit Size 1600×256mm (Horizontal), 256×1600mm (Vertical) (Length can be customized)
Resolution/unit 64×10 dot
Pixel Density 1562 dot/m²
Material Aluminum Body & PC Mask (can customize the color)
Weight 12 kg/m²
Unit Permutation Horizontal / Vertical
Transparency 60%
Input Voltage 110-240 VAC
Power Consumption Max. 450 w/m² / Avg. 150 w/m²
Installation Front & Back
Protection IP67
Gray Scale RGB 32768 bit (3×15bit)
Refresh Rate 3840 Hz
Frame Rate ≥60 Hz
Working Environment Temperature: -30 to +60; Humidity: 10%-90%
Control System JV-A JV-N
